全自動深壓紋清廢模切機

全自動深壓紋清廢模切機

  • 所屬分類:全自動深壓紋清廢模切機

  • 點擊次數:
  • 發布日期:2018/11/26
  • 在線詢價
  • 詳細介紹

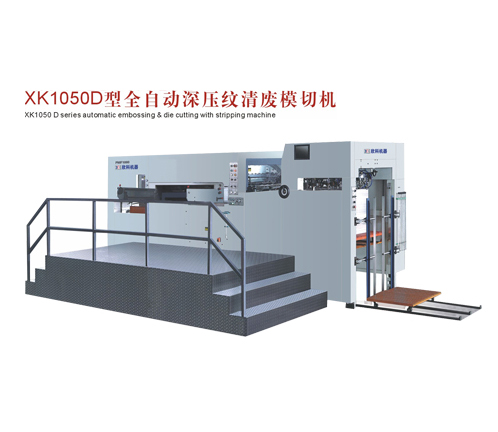

全自動深壓紋清廢模切機

全自動深壓紋清廢模切機

XK1050D型全自動深壓紋清廢模切機機器主要特點:

1、全自動模切機上平臺采用12個加熱溫區,每個溫區的溫度可以單獨調控(40-190℃)加熱溫度均勻。用于熱村紋、熱壓凹凸、熱壓痕等熱壓工藝。

2、四吸五送九個吸嘴的給紙頭,吸紙強力、送紙穩定,吸嘴可配合紙張的變化狀況不停機調理吸紙高度、角度和吸風量,實現厚薄兼顧、辦理紙準確平穩。

3、預堆碼紙和主副給紙機構,買現不停機連續給紙。

4、采用PCL電腦程序控,井在操作面、收紙面二處分別裝有人機界面顯示時時監控機器的運轉狀態,井對電腦程序控制器的輸入、出點及督種故障進行動態監控,在這二處裝有人機界面觸摸屏對排除故障及操作非常方便

5、熱壓蜂窩版、刀模版框、模切鋼板采用氣動鎖板定位,精度準確、操作方便。

6、采用高強度鋁合金牙排,叼紙平穩,有效防止牙排動。牙排的前后定位增加了可調裝置,牙排定位精度因主鏈條或機件磨損誤差可微調補償。

7、左右模切主塘板、上平臺、動平臺、底臺等承載橫切壓力的關鍵部件,用耐壓高強度球鑄鐵高溫整體造而成,井經長時間去應力回火、時效處理,可保證在高壓力橫切時不變形、壓力平穩。

8、循環潤滑油空調恒溫冷卻系統可保證主傳動內療關節潤滑效果。強制自潤滑系統,確保主傳動內部供油正常,無油自動停機。定時潤滑系控制各潤滑點進行定時定量注油潤滑。

The main features of XK1050D automatic deep embossing die cutting machine are as follows:
1. Twelve heating temperature zones are used on the platform of automatic die-cutting machine. The temperature of each temperature zone can be adjusted and controlled separately (40-190 C) and the heating temperature is uniform. It is used for hot pressing processes such as hot village pattern, hot pressing concave convex and hot indentation.
2. The paper feeding head of four suction, five suction and nine suction nozzles has strong suction force and stable feeding. The suction nozzle can adjust the height, angle and air suction volume of paper suction without stopping, so as to realize the consideration of thickness and to handle paper accurately and smoothly.
3. Pre-stacking paper and main and auxiliary paper feeding mechanism, buy continuous paper feeding without stopping.
4. Using PCL computer program control, the well can monitor the running state of the machine when it is equipped with the human-machine interface display on the operation surface and the paper receiving surface respectively. The well can dynamically monitor the input, exit and supervisory faults of the computer program controller. It is very convenient for troubleshooting and operation to install the touch screen of the human-machine interface in these two places.
5. Hot-pressed honeycomb plate, knife template frame and die-cutting steel plate are positioned by pneumatic locking plate, which is accurate and easy to operate.
6. Use high strength aluminium alloy teeth row, holding paper smoothly, effectively prevent teeth row. The adjustable device is added to the front and back positioning of the tooth platoon, and the positioning accuracy of the tooth platoon can be adjusted and compensated by the wear error of the main chain or machine parts.
7. The key components bearing transverse shear pressure, such as the main pond plate, upper platform, moving platform and bottom platform, are integrally made of high-temperature high-pressure high-strength ductile iron. After long time stress-relieving tempering and aging treatment, the well can ensure no distortion and stable pressure in high-pressure transverse shear.
8. The constant temperature cooling system of circulating lubricating oil air conditioning can ensure the lubrication effect of the main drive internal therapy joint. Forced self-lubrication system ensures normal oil supply in the main drive and automatic shutdown without oil. Timing lubrication system controls each lubrication point for timing and quantitative oil injection lubrication.
